Laguna Tools SS24T#

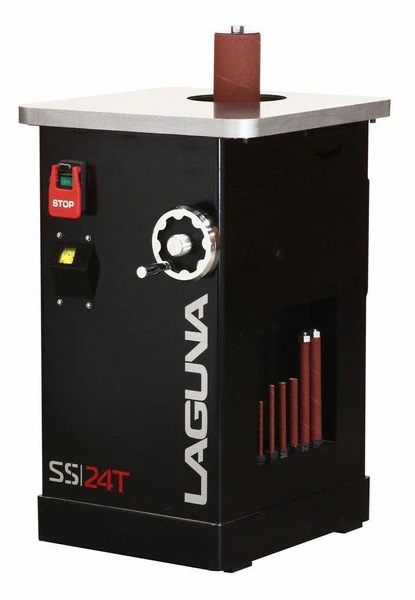

The SS24T is an oscillating spindle sander with different sized drums.

A sander is great for cleaning up edges and removing rough material from a piece of wood.

The sanding drum can be tilted up to 45 degrees to allow for chamfering / beveling.

Prerequisites for Use#

Safety Notices#

Note

PLEASE READ ALL SAFETY NOTICES BEFORE CONTINUING

Wear short sleeves or roll up long sleeves

Secure loose clothing

Tie up and tuck in long hair

Remove lanyards, jewelry, gloves, etc.

Safety glasses mandatory.

Do not use on fibrous plastics (carbon fiber, fiberglass, etc)

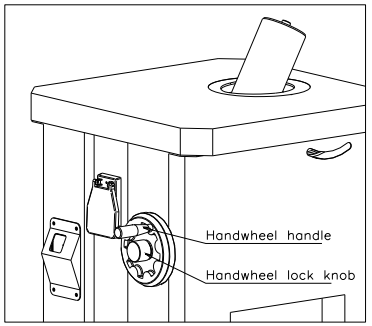

Angle Adjustment#

The angle of the sanding drum can be tilted up to 45 degrees.

  1. Unlock the handwheel by spinning the knurled knob
  2. Spin the handwheel and watch the dial
  3. Set to desired angled
  4. Tighten knurled knob to lock in place

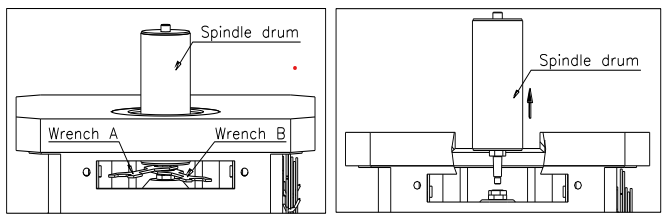

Changing Sanding Drums#

The sanding drums on the spindle sander can be changed to allow for different radii to be sanded.

  1. Make sure the machine is off / ACS is in idle state
  2. Open the panel on the backside of the machine
  3. Using the two wrenches on the machine, loosen and remove the spindle drum
  4. Place the new spindle drum in and tighten with wrenches
  5. Mount the new throat plate that is appropriate for the size of the drum.

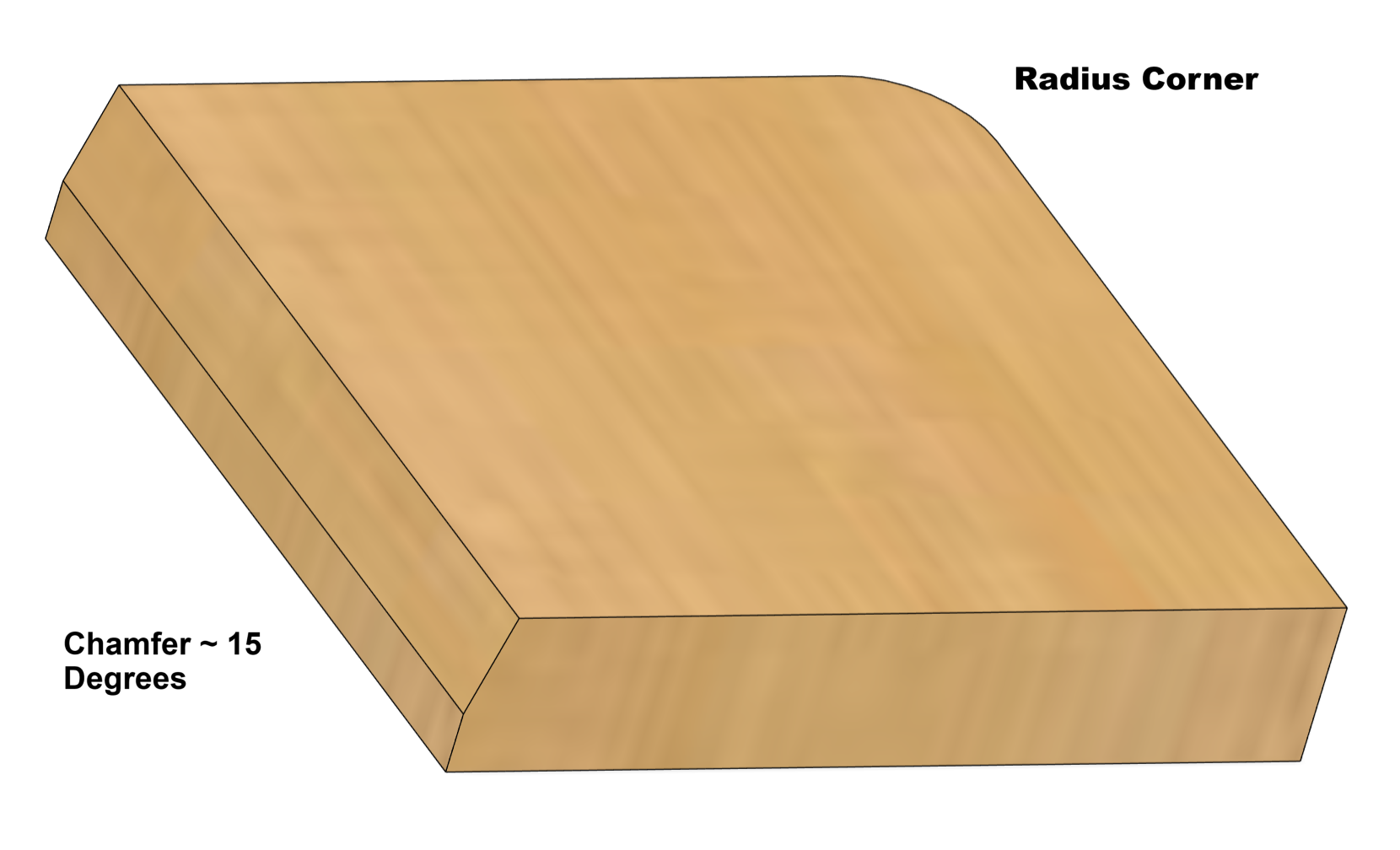

In-Person Competency Check#

  1. Grab a scrap of wood
  2. Adjust sanding drum to a 15 degree angle and sand a chamfer onto the wood
  3. Reset sanding drum to 0 degrees
  4. Put a radius on one of the corners
